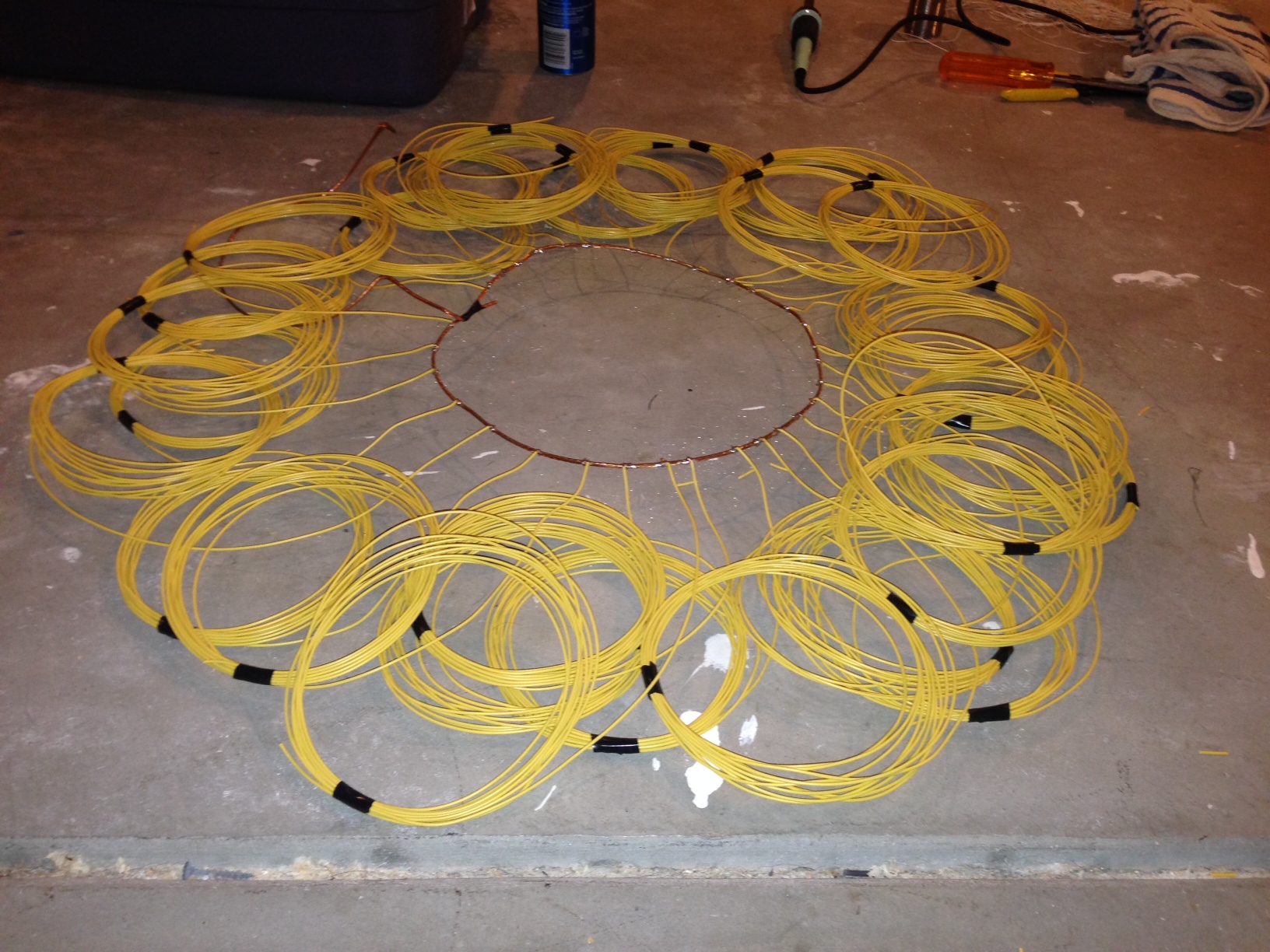

I put together a radial system for my 5 band trapped vertical antenna. I’m using (32) 16.25′ radials, soldered to a 10 gauge bare copper wire. The copper ring will connect to the 3 bolts at the base of the vertical. For wire, I purchased a 500′ roll of underground dog fence wire at Home Depot. Each wire will be buried just below the surface in a star burst pattern. I used the ARRL antenna book to calculate the optimal radial system for the amount of wire I have.
5BTV radial wire
I decided to try making my own shock corded whips for my Buddipole system. There are a couple of good reasons to do this. So far I’ve purchased all parts at 13″ or less to keep the Buddipole good for travel. The Buddipole whips look nice, but they’re 22″ long and are expensive.

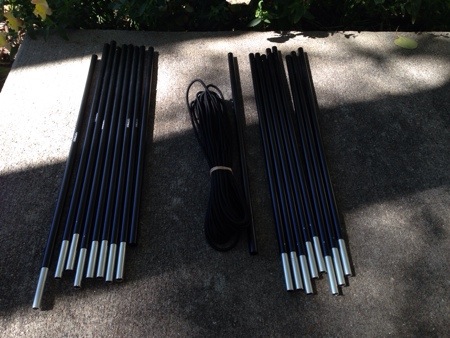

For about $50 shipped from quest outfitters in Florida, I purchased (18) 13″ Easton 0.340″ tent poles. My plan is to machine brass adapters for a tight slip fit between sections, and a 3/8-24 brass adapter for the versatee. All parts will be held together with 1/8″ shockcord. This will give me a set that can be used as a dipole, or as a vertical with my RAK. More updates once I start turning metal!
